Electrical Installation Training Kit
A low-voltage practical training system designed around 24 VAC for safer electrical installation exercises.
Product Overview
Model: 24 VAC safety-oriented training platform.
Training interfaces: Practical wiring, switches, bell circuits, outlets, breakers, timers and electrical installation fundamentals.
Safety concept: Low-voltage architecture for safer student practice compared with direct 220 VAC training.
Applications: Vocational schools, technical colleges, electrical installation courses and introductory maintenance training.
Complete Product Details
A practical educational stand for electrical installation training using 24 VAC instead of direct 220 VAC mains. Designed for schools, colleges, training centres and practical labs, with a realistic hands-on learning environment.
Key Features
- 24 VAC safer training environment for learners.
- Off-the-shelf modular electrical components.
- Transparent conduits for visible wiring paths.
- Realistic hands-on wiring practice.
- Thermally powder-coated steel structure.
- Laminated wood panels with high-quality finish.
- Modular mounting positions for flexible configurations.
- Supports lighting, bell, switching, protection and measurement exercises.
Training Applications
Single switch circuits, two-way switching and intermediate switching.
Bell circuits and staircase timer circuits.
Outlet wiring, lighting circuits and practical cable routing.
Electricity-meter familiarity and installation measurements.
Electrical Switches, Mechanisms, Faceplates & Frames
- Single switch
- Directional switch (two-way switch)
- Intermediate switch (cross switch)
- Bell push switch
- 1-module switch mechanism
- 3-gang faceplate
- 3-module support frame
- 2-module support frame
- Brass bridges / junction links
- Switch box + cover

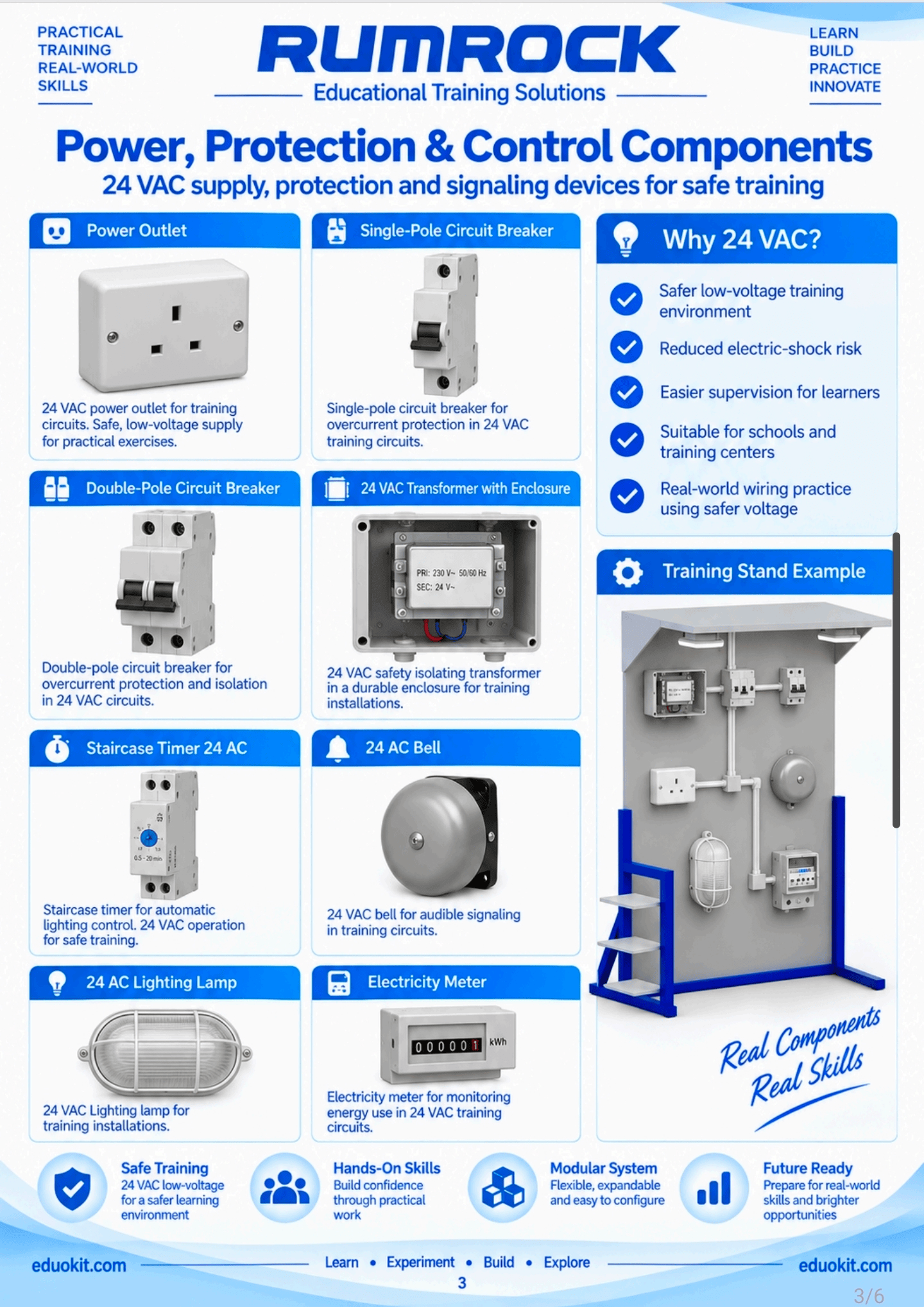

Power, Protection & Control Components
- 24 VAC power outlet
- Single-pole circuit breaker
- Double-pole circuit breaker
- 24 VAC transformer with enclosure
- 24 VAC staircase timer
- 24 VAC bell
- 24 VAC lighting lamp
- Electricity meter
Wiring Tools, Ferrules & Accessories
- 24 V test screwdriver
- Wire cutter
- Combination pliers
- Ferrule crimping tool
- Wire ferrules in assorted colors
- 4-color wiring set: red, blue, black and yellow — 30 m each
- Transparent wire conduits
- Conduit accessories: elbows, couplers, tees, clips and junction boxes

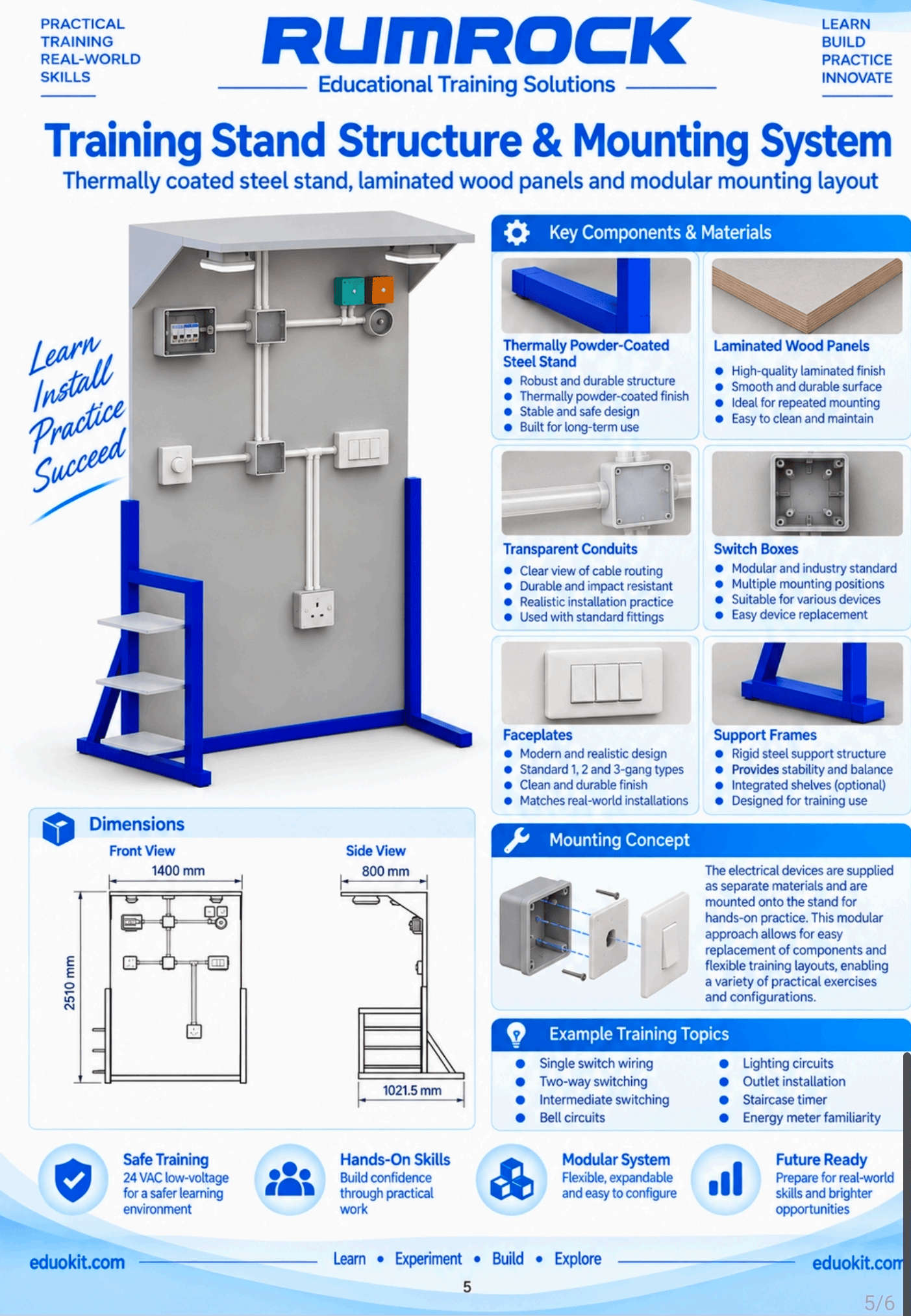

Training Stand Structure & Mounting System
The stand combines a thermally powder-coated steel structure, laminated wood panels, transparent conduits, switch boxes, faceplates and rigid support frames. Electrical devices are supplied as separate materials and mounted on the stand for hands-on practice, allowing components to be replaced and training layouts to be changed for different exercises.
1400 mm
2510 mm
800 / 1021.5 mm
Why 24 VAC for Training?
Higher electric-shock risk, involuntary muscle contraction, burns and arc hazards, equipment-damage risk and increased danger for beginners are associated with direct mains-voltage training.
Lower electric-shock risk, safer hands-on practice, better suitability for schools and training centres, easier instructor supervision and compatibility with realistic training devices.
Important safety note: 24 VAC is safer than 220 VAC, but it is not zero-risk. Proper insulation, good wiring practice, qualified supervision and disconnecting power before modifications remain essential.
